Tankless Water Heater Venting

Tankless water heater venting must match the exact gas model and approved route. Keep materials, fitting limits and the outdoor outlet together.

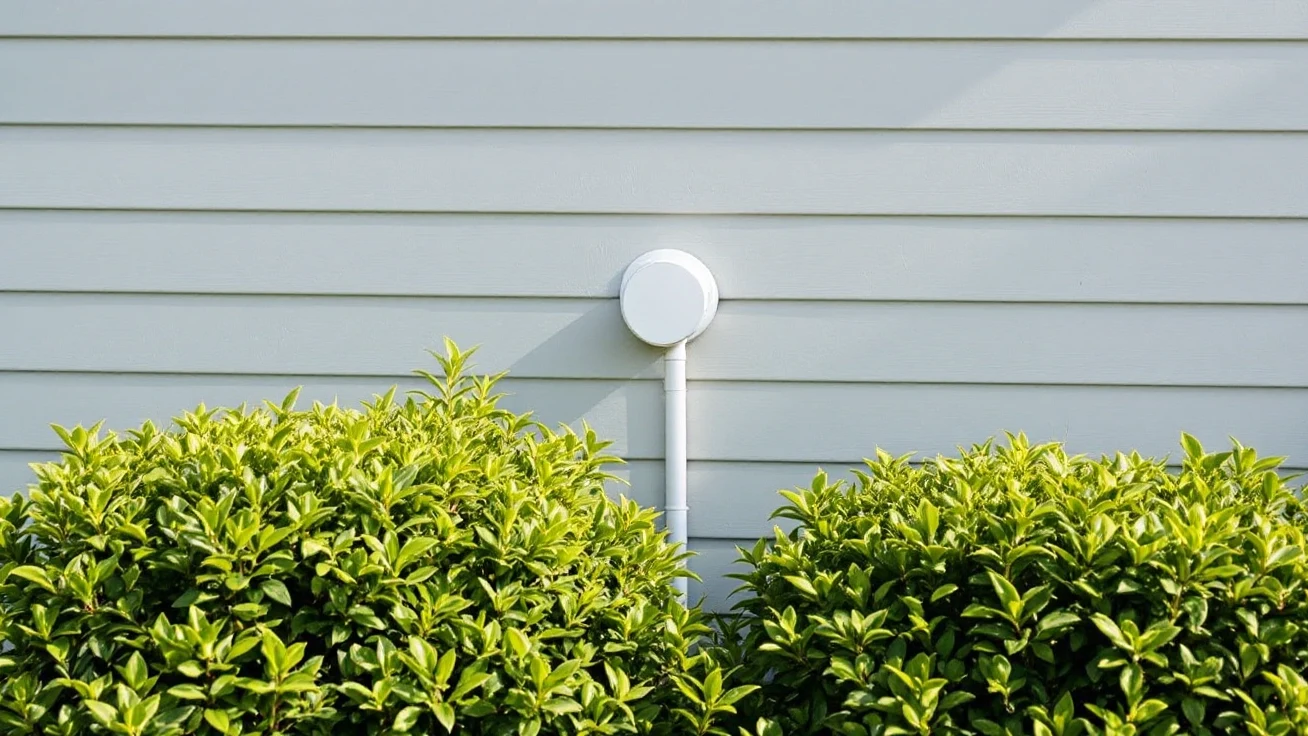

Round white vent pipe coming out of grey house siding above shrubs
Sections10

Tankless water heater venting starts with the exact gas unit. Condensing and non-condensing models may need different systems. Electric resistance tankless burns no fuel. It needs no gas exhaust.

Outdoor gas units still have site rules. Use this guide to plan the checks. It gives no vent design or universal clearance.

Use the exact model US manual for the vent plan. Keep materials and route limits together. Check each bend and the full path. Include the air supply for burning gas. Do not reuse an old flue by default. Do not extend an outdoor outlet without approval. A vent route must work before the heater is chosen.

Tankless water heater venting starts with the appliance

Copy the full model code and fuel. Find the manual that applies to it. Read the vent section with any extra-part instructions. A brochure can help shortlist units.

It cannot set the vent design. Keep the manual revision with the plan so the chosen route has a clear source.

Separate the heater's fuel from its vent category. Two gas heaters do not necessarily use the same vent system. A change from storage to tankless may alter the exhaust conditions a lot. Do not assume an old chimney or connector can stay.

Check the roof route too. Past use with another heater does not prove fit.

Materials and configurations must stay matched

Decision Evidence to keep
Heater Exact model and relevant manual revision
Setup Allowed intake and exhaust setup
Material Approved system and component rules
Route Developed length and fitting treatment
Termination Location and model-specific clearance record
Condensate Needed handling for heater and vent

Some condensing units allow stated plastic vent systems. That does not allow all plastic pipe. Other gas units can need other systems. Match every part to the chosen manual.

Keep the pipe size and joint rules together. A convenient part from another system may not be allowed.

An intake brings in air for burning gas. It is not a spare exhaust pipe. Read the whole approved layout. Check which parts the maker permits.

A sketch with two pipes cannot prove fit on its own. The model and full rules must match the proposed route.

Route length and fittings need one consistent method

A straight route limit may change when the path has bends. The manual sets how to count each fitting. Pipe size can change that limit too. Keep the same method for the whole route.

A distance copied from one layout cannot approve a different one.

Have the installer document the final route before ordering the heater. A narrow passage through a wall can be a constraint even if the room has enough cabinet space. Check the complete path and service access. Moving a termination late in the project can change both scope and cost.

Termination is a site decision

Check the site of the exhaust outlet. Windows and doors can affect where it may go. So can weather and ground level. Use the exact manual for clearances.

Check adopted rules too. There is no distance on this page to copy to every heater. The real site needs its own record.

An outdoor model has its own exhaust outlet rules. So does an approved outdoor conversion. Do not block or freely redirect the exhaust. Use only parts allowed for that unit.

The outdoor guide covers weather checks. Frost risk remains a separate issue from the vent route.

Combustion air and carbon-monoxide precautions

The heater needs the air supply its manual states. Exhaust must reach the approved outdoor outlet. Changes to the building can affect both. Check before closing an opening or changing a heater room.

An old system that once worked is not proof that a changed room is suitable.

Keep carbon-monoxide alarms working under their instructions. An alarm cannot make a faulty vent safe. If one sounds, leave for fresh air and follow emergency guidance. Do not keep using the heater while trying to fix its exhaust.

Retain the alarm instructions with the home safety plan.

Condensate and later service access

Condensing systems can need drains at the heater and vent. Read the manual for both. The route must not trap liquid in a way the system forbids. A neutralizer treats liquid; a pump moves it.

Their use depends on the real route. Keep each device within reach for upkeep.

Leave access for inspection and upkeep. Do not enclose a vent or heater so that needed checks become impractical. Keep the final work record and extra part facts with the owner manual. The condensate guide distinguishes this drainage from relief discharge.

Compare installation scopes on the same basis

A quote that says vent included needs a defined route and approved system. Ask which outlet parts and wall or roof repairs it covers. Record whether removal of the old vent is included. Unknown route work is not a zero-cost line just because the heater has already been priced.

The installation guide places venting alongside fuel and water-supply decisions. If the route is impractical, choose a different location or system before work starts. A larger advertised maximum flow cannot resolve a blocked exhaust route or an unsuitable termination location.

Frequently asked questions

Can every condensing model use the same plastic pipe?

No. The selected model's manual and approved vent system set the allowed materials and assembly. Temperature and other conditions matter. A generic claim that condensing heaters use plastic omits those rules.

Keep the exact material details and extra part instructions instead of treating pipe appearance or a trade name as approval.

Can the old storage heater's flue stay?

Only if the new heater's rules and the flue's condition allow it. A previous heater running there does not prove that the flue suits the new one. Tankless and storage heaters can need different vent systems. Record the reuse decision and any work on the old vent before calling the location ready.

Does electric tankless require this combustion vent?

Electric resistance tankless does not burn fuel and needs no combustion exhaust. It still has power and service rules. The site must suit it too. No vent does not mean any site will work.

Check the proposed cabinet or closet. Outdoor use needs its own model approval. Read the exact electric model instructions. Check the home's power supply as a separate task.

Tankless water heater venting verdict

Tankless water heater venting needs an approved route for the exact heater. The outdoor outlet must suit the site too. Primary references: Rinnai model documents and current Navien model documents. Check the real model's relevant revision instead of transferring these documents to unrelated equipment.
